MSI Open Frame Conveyors

WE CUSTOM BUILD THE FINEST CONVEYORS IN THE WORLD


APPLICATIONS FOR MSI OPEN FRAME CONVEYORS

Sorting Conveyors for Municipal Recycling Systems

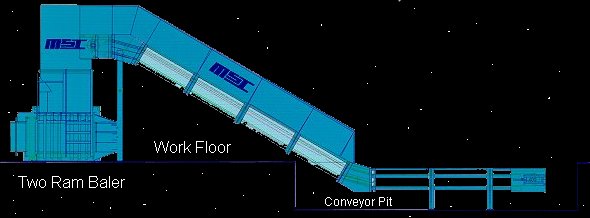

Infeed for Entire Range of MSI Balers and Preconditioning Equipment

Waste Paper, Textile Fibers, UBC, PET, HDPE, OCC, Magazines, and Paper Tubes


MSI Combination Belt conveyors consist of a flexible, long wearing PVC belt that moves on a system of steel rollers and T-1 steel wear pads. This design has proven to be a winner where economics, dependability, and useful life have to be considered. These conveyors are excellent for use in recycling installations and solid waste handling facilities. MSI Steel Hinge Pan conveyors consist of a belt of hinged steel pans with sidewalls that move on a system of steel roller and T-1 steel wear pads. The steel hinge pan conveyor is the excellent choice for installations in harsh operating conditions, or where absolute reliability and dependability are required for the long haul.

Specifications and Dimensions subject to Change Without Notice

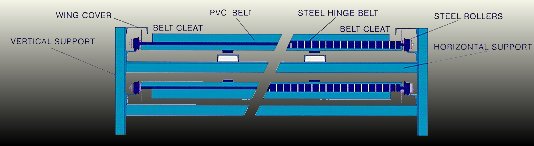

COMBINATION BELT

STEEL BELT

6" Pitch 250 PVC

(Coated Both sides)

Rollers - 3" OD Steel

6" Pitch ¼" Steel

Hinge Pan

Rollers - 3" OD Steel


CONSTRUCTION - MSI Open Frame conveyors are manufactured of heavy (hi-tensil) structural steel (ship channel) members, jig welded, properly braced, reinforced and gusseted.

Wear strips are replaceable T-1 type "A"

ELECTRICAL - Drive motors are supplied. Starters, controls, and any electrical parts are not included unless specified.

HYDRAULICS - Optional hydraulic drive is available for variable speed drive. Hydraulic components have a 4 to 1 safety factor.


Please call 800.468.3454 for pricing information. Thank you for your interest.
